Massif Sand Filter
Double Layered Lateral System

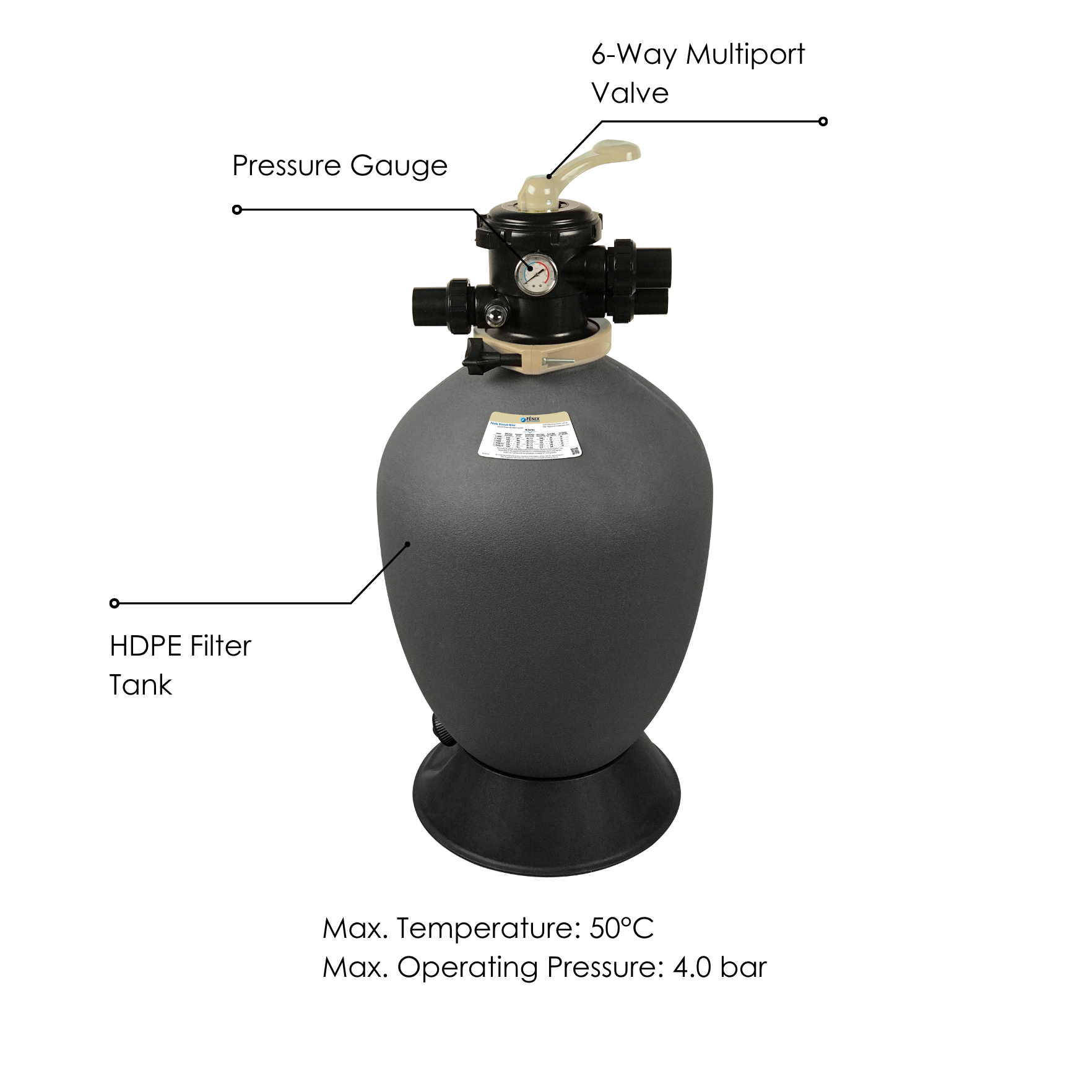

The Fénix Massif filter is a featured design for producing high-quality water:
The filter tank is made of high-density polyethylene material that is structurally engineered to maximize its strength. This one-piece blow-molded tank is engineered to provide superior clarity of filtered water and the filter boasts an exceptional pressure standard that outperforms industry benchmarks. Additionally, the filter contains a multiport valve that is made of durable components to ensure efficiency, reliability, and ease of use. The Massif Filter is strategically positioned as a top-quality product that delivers an exceptional filtration experience while providing great value for money in the market.
Technical Information:
| Model | Filtration Area ( m² ) | Max. Flow Rate ( m³/h ) | Valve Connection | Sand (0.5 - 0.8 mm) ( Kg ) | Sand (1.0 - 2.0 mm) ( Kg ) |
|---|---|---|---|---|---|
| M450 | 0.16 | 8 | 1.5" / 50mm | 55 | 20 |
| M500 | 0.2 | 10 | 1.5" / 50mm | 70 | 25 |
| M600 | 0.29 | 14.6 | 1.5" / 50mm | 120 | 45 |
| M700-1.5 | 0.39 | 19.5 | 1.5" / 50mm | 145 | 55 |
| M720-2.0 | 0.39 | 19.5 | 2.0" / 63mm | 145 | 55 |

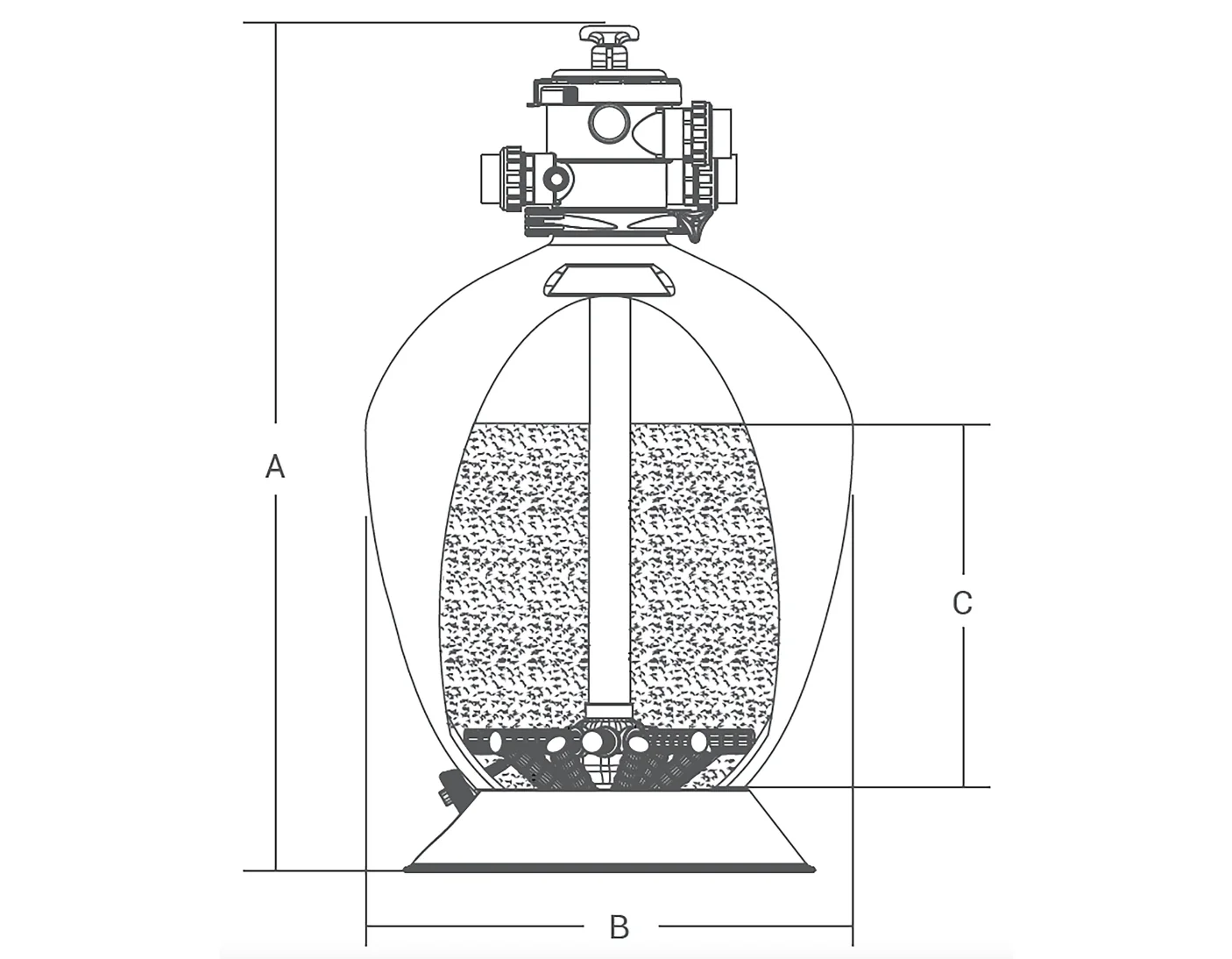

Product Dimensions:
| Model | A ( mm ) | B ( mm ) | C ( mm ) |
|---|---|---|---|
| M450 | 954 | 457 | 353 |
| M500 | 1040 | 508 | 400 |
| M600 | 1090 | 610 | 457 |
| M700-1.5 | 1180 | 711 | 516 |
| M700-2.0 | 1232 | 711 | 516 |
