CitrinEco Sand Filter Series

Blow-Molded

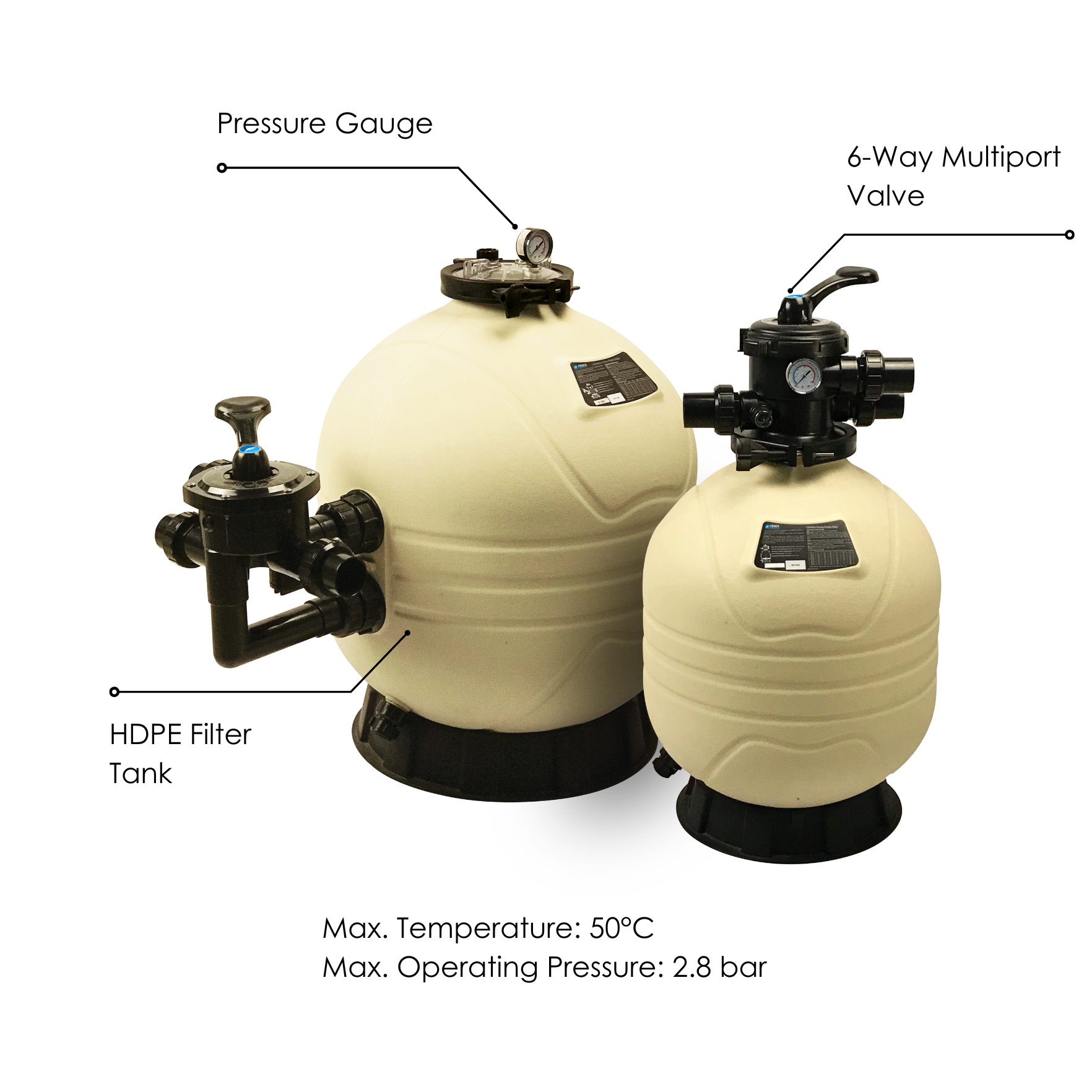

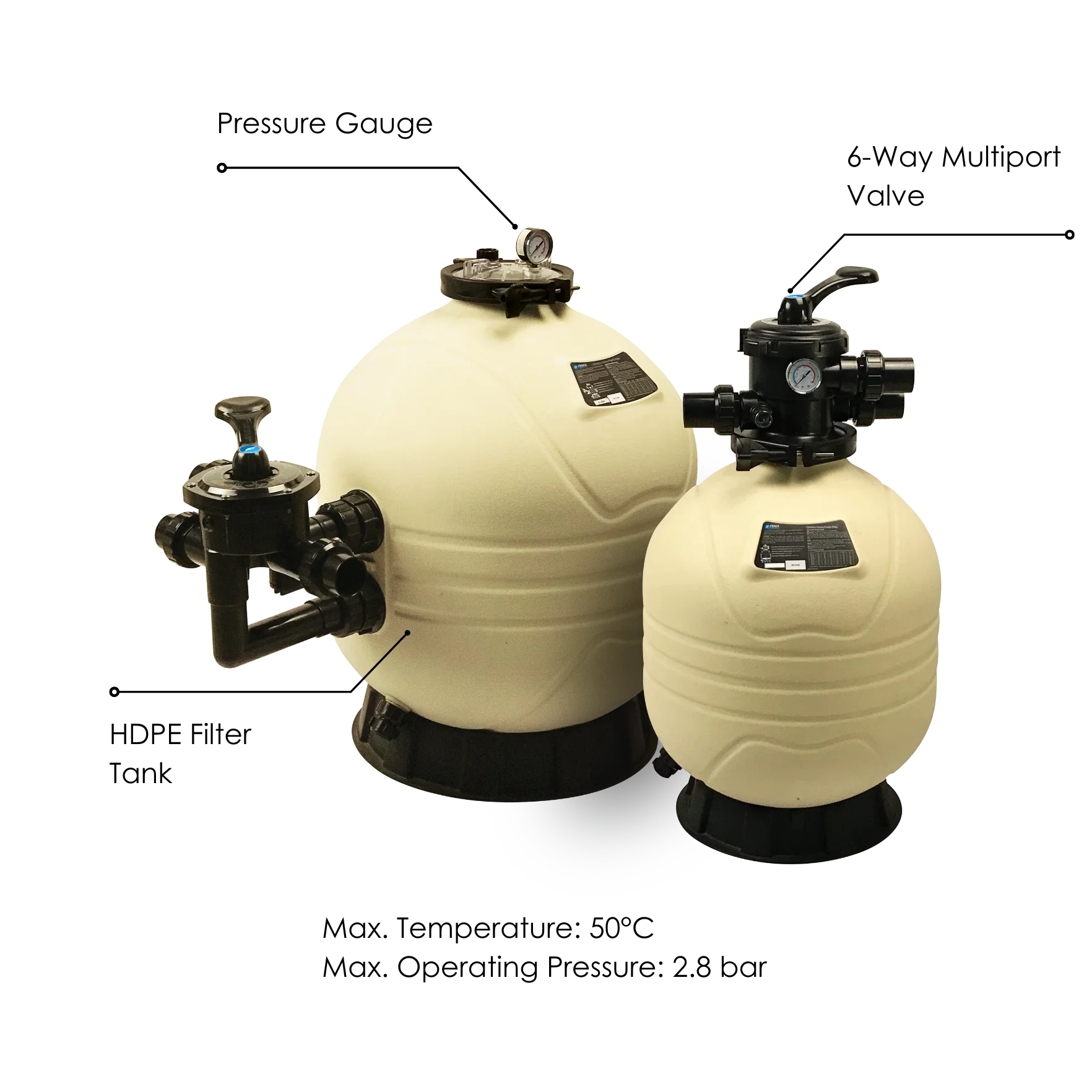

CitrinEco Pool Filter Series

FENIX's CitrinEco Sand filter series combines innovative design and advanced technology to offer superior filtration performance and crystal-clear water. These filters are a more affordable version of the Citrin series, featuring a seamless, one-piece blow-molded filter tank made of high-density polyethylene ensuring durability for heavy-duty use, reliability, and cost-effectiveness.

Technical Information:
CitrinEco

( Top Mount )

CitrinEco

( Side Mount )

Filtration Area

( m² )

Diameter

( mm )

Max. Flow Rate

( m³/h )

Valve ConnectionSand

(0.5 - 0.8 mm) ( Kg )

Sand

(1.0 - 2.0 mm) ( Kg )

Gravel

(3.0 - 5.0 mm)( Kg )

CET450 CES450 0.14 425 7 1.5" / 50mm 40 - -
CET500 CES500 0.2 500 10 1.5" / 50mm 55 15 -
CET600 CES600 0.28 600 14 1.5" / 50mm 95 30 -
CET700 CES700 0.36 675 18 2.0" / 63mm 140 45 -
CET800 CES800 0.47 775 23.5 2.0" / 63mm 185 40 25
CET900 CES900 0.61 875 30.5 2.0" / 63mm 245 50 30
* The media quantities and sizes provided above are for reference only and may vary depending on the purpose of water filtration as well as the media type, source, and density.
Product Dimensions:
ModelA

( mm )

B

( mm )

C

( mm )

D

( mm )

E

( mm )

CET450 816 695 625 195 425
CET500 889 772 712 225 500
CET600 980 860 800 280 600
CET700 1133 976 910 300 675
CET800 1178 1021 955 370 775
CET900 1296 1139 1073 440 875
CitrinEco Top-Mount Filter Dimensions
ModelA

( mm )

B

( mm )

C

( mm )

D

( mm )

E

( mm )

F

( mm )

CES450 355 418 670 195 425 125
CES500 396 549 760 225 500 125
CES600 430 493 825 280 600 125
CES700 460 546 946 300 675 130
CES800 508 594 968 370 775 130
CES900 664 650 1086 440 875 130
CitrinEco Side-Mount Filter Dimensions
