SWIMMING POOL AND SPA PRODUCTS LINEUP
OnganEX

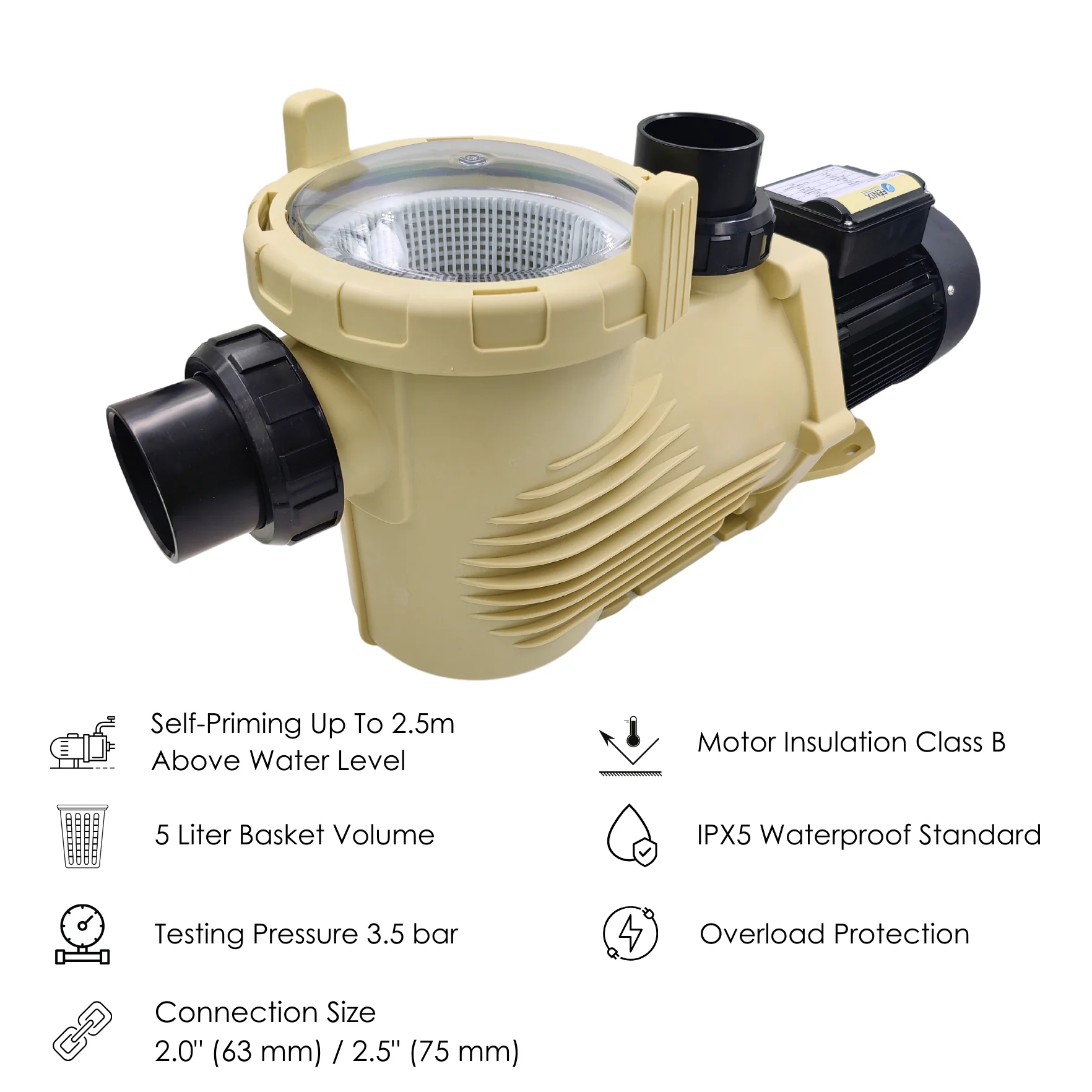

Excel-Power Self-Priming Pool Pump
Introducing our high-performing self-priming pool pump, the Ongane Excel-Power pool pump. Engineered with precision and powered by an asynchronous, two-pole motor, this pump is designed to elevate your pool experience with cutting-edge features. The ring lock seal design ensures the elimination of suction leaks, maximizing suction efficiency for optimal performance.
Key Product Features:
- Motor: Asynchronous, Two poles motor
- Insulation Class: 130(B)
- Waterproof Standard: IPX5
- Thermal Protection: Built-in for added safety.
- Overload Protection: Safeguards the motor from excessive loads
- Voltage Options: Available in 50Hz or 60Hz with 220V/380V
- Union Compatibility: Special design for compatibility with both imperial and metric standards
- Shaft Material: 316 Stainless steel for durability
- Mechanical Seal: 316 Stainless steel for enhanced sealing
- Self-Priming: Capable of priming up to 2.5m above water level
- Testing Pressure: 50 PSI (3.5 Bar)
- Basket Volume: 5 litres for efficient debris collection
With its advanced features and robust construction, the Ongane Excel-Power pump is your reliable choice for efficiently circulating pool water.
Technical Information:
| Model | Voltage | Input Power ( kW ) | Current ( Amp ) | Noise ( dB ) | Horsepower ( hp ) | Weight ( Kg ) | Flow Rate ( m³/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6m | 8m | 10m | 12m | 14m | 16m | |||||||
| FO200EX | 220-240V / 50Hz | 1.8 | 8.2 | 68 | 2 | 23 | 32 | 30 | 27 | 24 | 21 | 17 |
| FO300EX | 220-240V / 50Hz | 2.2 | 10 | 69 | 3 | 24 | 37 | 35 | 32 | 29 | 26 | 22 |
| FO400EX | 220-240V / 50Hz | 2.8 | 12.5 | 71 | 4 | 25 | 45 | 42 | 39 | 36 | 32 | 28 |
| FO200EX | 380-400V / 50Hz | 1.8 | 8.2 | 68 | 2 | 23 | 32 | 30 | 27 | 24 | 21 | 17 |
| FO300EX | 380-400V / 50Hz | 2.2 | 10 | 69 | 3 | 24 | 37 | 35 | 32 | 29 | 26 | 22 |
| FO400EX | 380-400V / 50Hz | 2.8 | 12.5 | 71 | 4 | 25 | 45 | 42 | 39 | 36 | 32 | 28 |

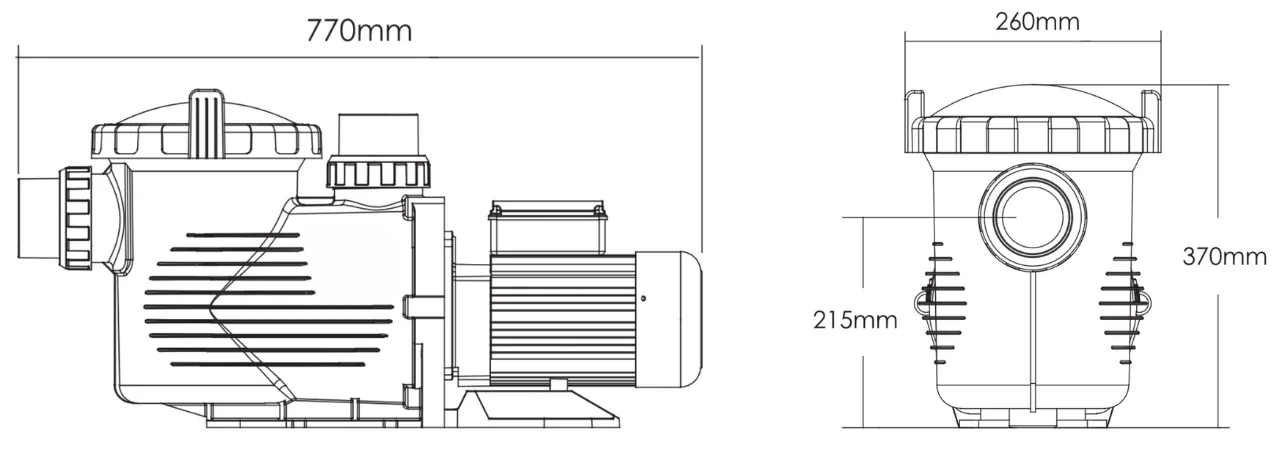

Product Dimensions:
