SWIMMING POOL AND SPA PRODUCTS LINEUP
Complete Catalogue
2025 Edition • All our products in one document
View & Download our complete catalogue with technical specifications, images, and detailed information on all our products.

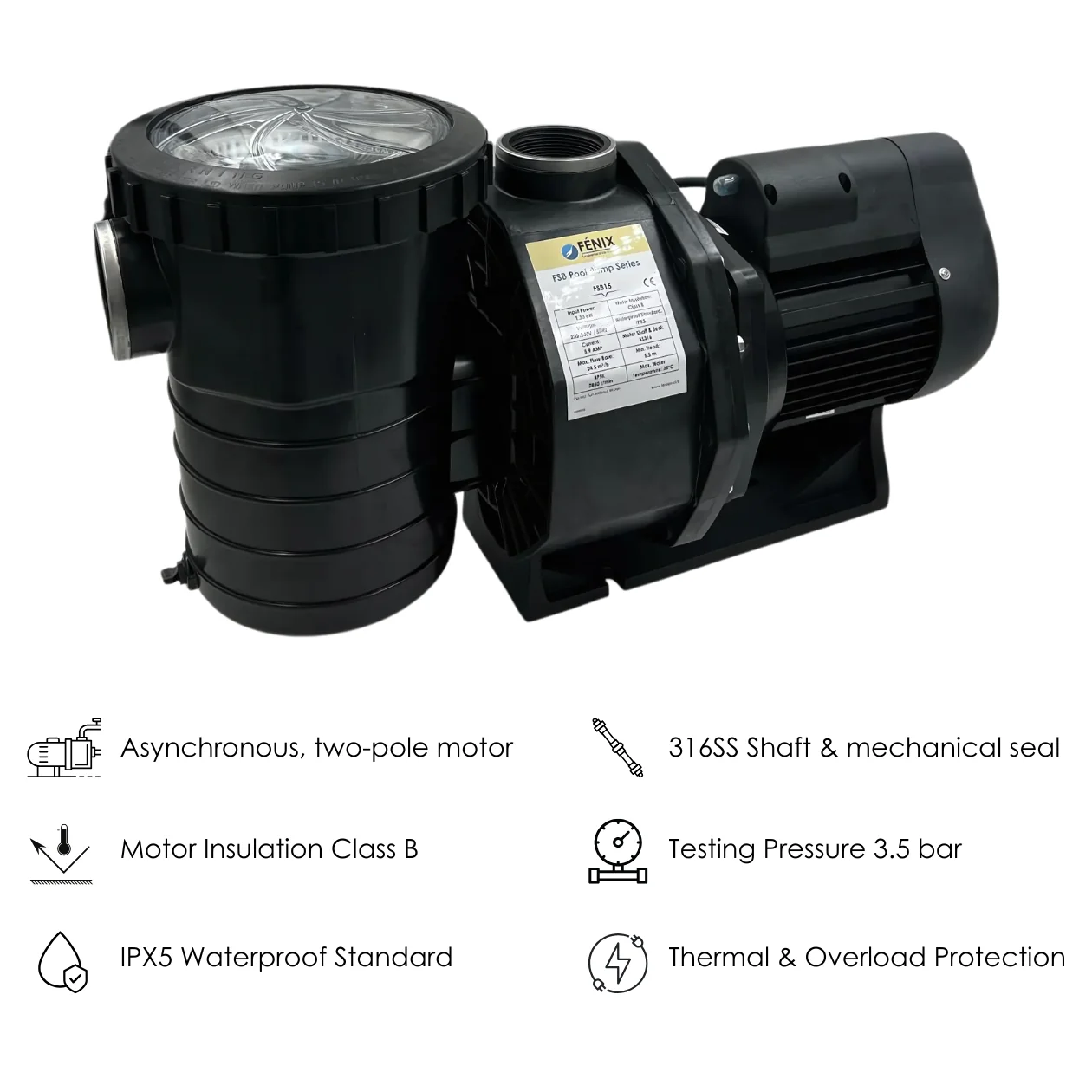

FSB Pump Series
Reliable Lasting Performance
The FENIX FSB Series Pump combines high flow with energy-efficient performance.
It features 2-inch suction and discharge ports with a transparent lid, while its ring-lock seal design ensures leak elimination and optimized suction efficiency. Powered by an asynchronous two-pole motor, the pump includes motor insulation Class B for reliable operation. Its IPX5 waterproof rating offers enhanced protection against water ingress, while built-in thermal protection and overload protection ensure safe and durable performance.
The FENIX FSB Pump has specially designed unions which are compatible with both Imperial and Metric standards, making installation seamless. With a testing pressure of 50 psi (3.5 Bar), it features a robust 316 stainless steel shaft and mechanical seal for longlasting durability and corrosion resistance.
Technical Information:
| Model | Voltage | Input Power ( kW ) | Current ( Amp ) | Noise ( dB ) | Horsepower ( hp ) | Weight ( Kg ) | Flow Rate ( m³/h ) @ | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6m | 8m | 10m | 12m | 14m | 16m | |||||||
| FSB10 | 220-240V / 50Hz | 0.97 | 4.7 | 67 | 1 | 16 | 16.4 | 14 | 11 | 7 | - | - |
| FSB15 | 220-240V / 50Hz | 1.3 | 5.9 | 67 | 1.5 | 17 | 24 | 22 | 19.5 | 16 | 12 | 2 |
| FSB20 | 220-240V / 50Hz | 1.8 | 8.2 | 69 | 2 | 23 | 31 | 28 | 25.2 | 22 | 18 | 12 |
| FSB30 | 220-240V / 50Hz | 2.18 | 10.5 | 69 | 3 | 24 | 34 | 32 | 28.4 | 26 | 23 | 19.2 |

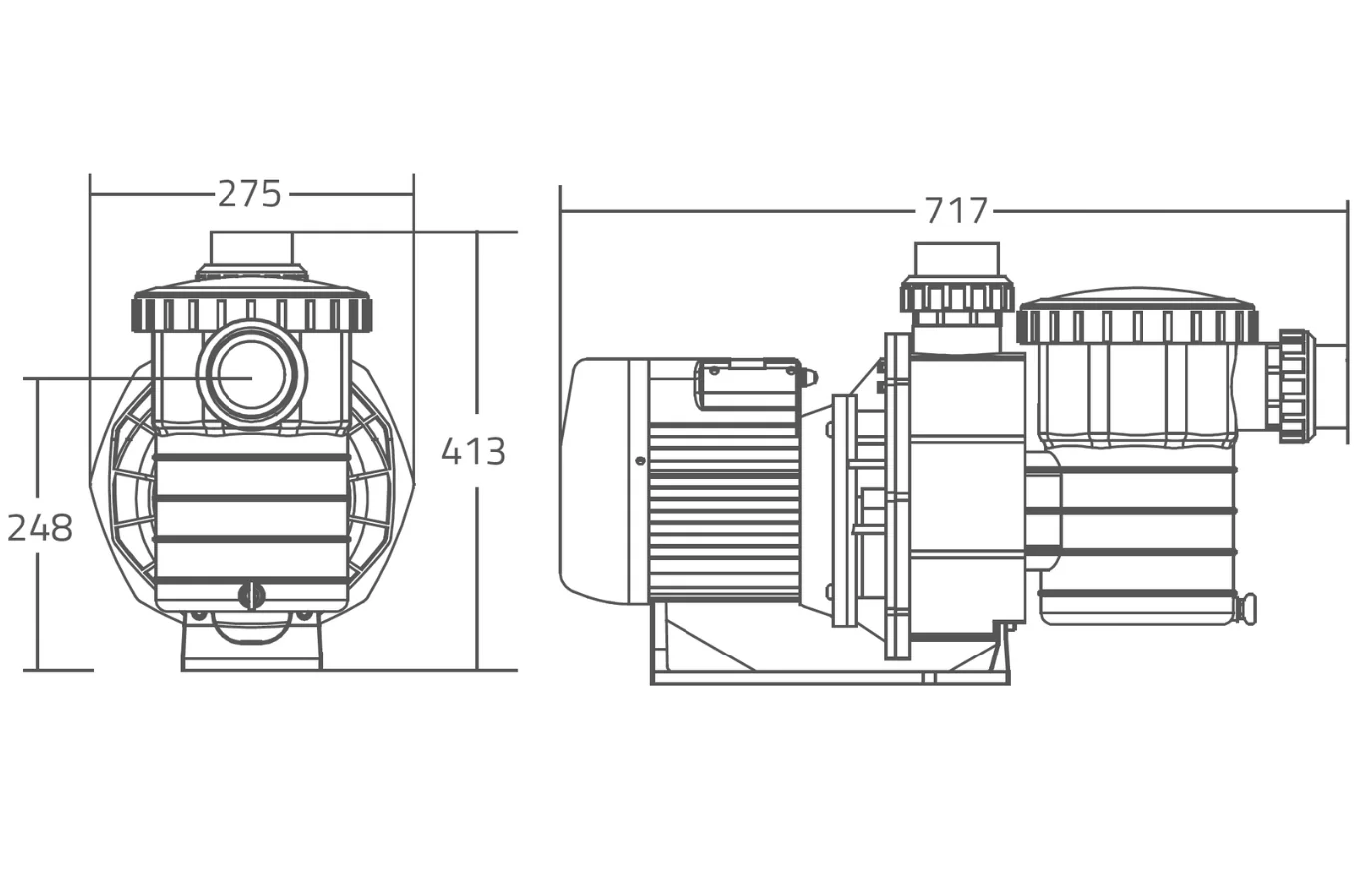

Product Dimensions:
