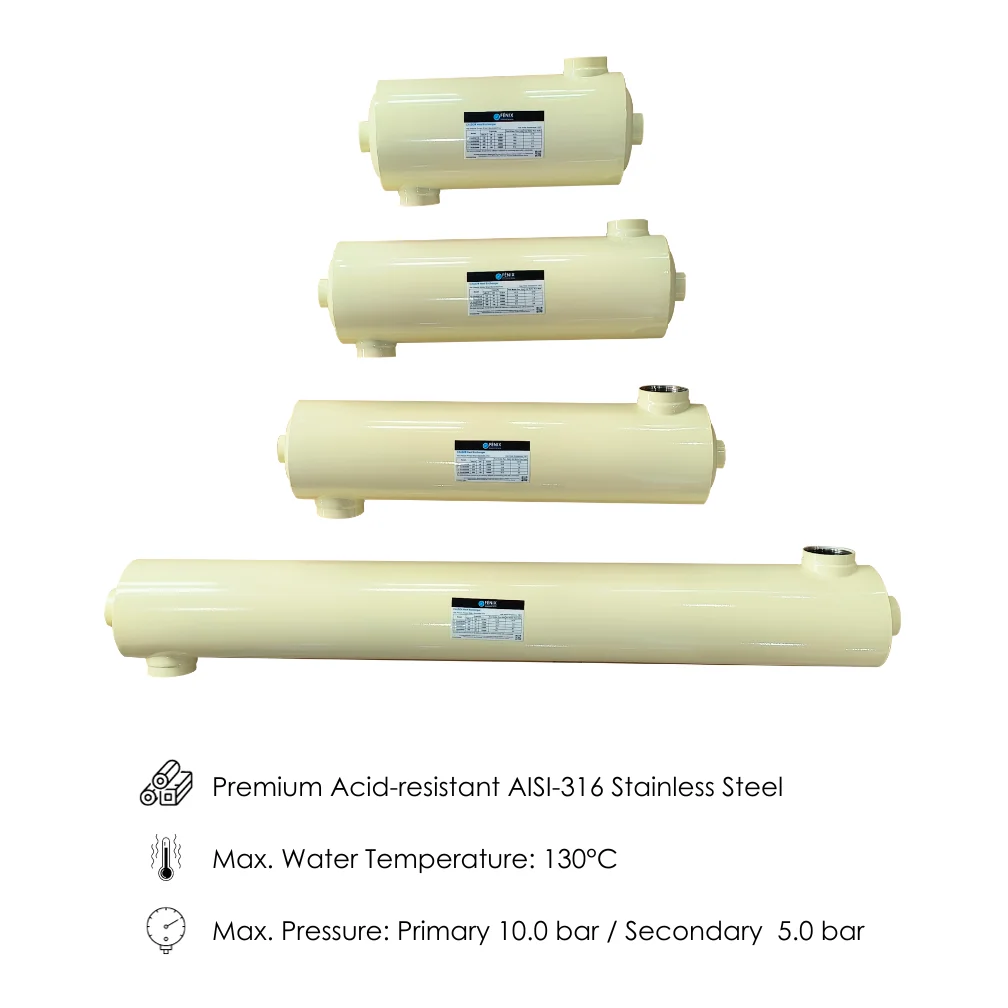

Fénix Caldor Heat Exchanger
Outstanding Heat Transfer Capacity
A CALDOR heat exchanger is designed to efficiently transfer heat energy from one medium to another, ensuring that the two media remain separate. With its cross-flow operation, CALDOR heat exchangers deliver impressive performance and exceptional heat transfer efficiency. A CALDOR heat exchanger can be integrated with various heat sources including electric, boilers, heat pumps and solar panel systems.
A CALDOR heat exchanger is made from premium acid-resistant AISI-316 stainless steel for exceptional durability. It is equipped with seamless pipes featuring flow restrictors, maximizing heat exchange capacity.
Technical Information:
| Model | Capacity | Pool Water Flow Rate | Hot Water Flow Rate | Length | Diameter | ||
|---|---|---|---|---|---|---|---|
| ( kBtu/h ) | ( kW ) | ( kcal/h ) | ( m³/h ) | ( m³/h ) | ( mm ) | ( mm ) | |
| CALDOR135 | 135 | 40 | 34000 | 12.0 | 1.5 | 360 | Ø133 |
| CALDOR200 | 200 | 60 | 51000 | 15.0 | 1.8 | 480 | Ø133 |
| CALDOR260 | 260 | 75 | 65000 | 18.0 | 2.1 | 600 | Ø133 |
| CALDOR400 | 400 | 120 | 100000 | 21.6 | 3.0 | 1070 | Ø133 |
Product Dimensions:
| Model | A ( mm ) | B ( mm ) | C ( mm ) | D ( mm ) | E ( mm ) | F ( mm ) | G ( mm ) | H ( mm ) | I ( mm ) |
|---|---|---|---|---|---|---|---|---|---|
| CALDOR135 | 180 | 302 | 360 | Ø133 | 25.4 (1.0") | 38.1 (1.5") | Ø6 | 165 | 170 |
| CALDOR200 | 180 | 422 | 480 | Ø133 | 25.4 (1.0") | 38.1 (1.5") | Ø6 | 165 | 170 |
| CALDOR260 | 180 | 542 | 600 | Ø133 | 25.4 (1.0") | 50.8 (2.0") | Ø6 | 165 | 176 |
| CALDOR400 | 180 | 1012 | 1070 | Ø133 | 38.1 (1.5") | 50.8 (2.0") | Ø6 | 165 | 176 |
