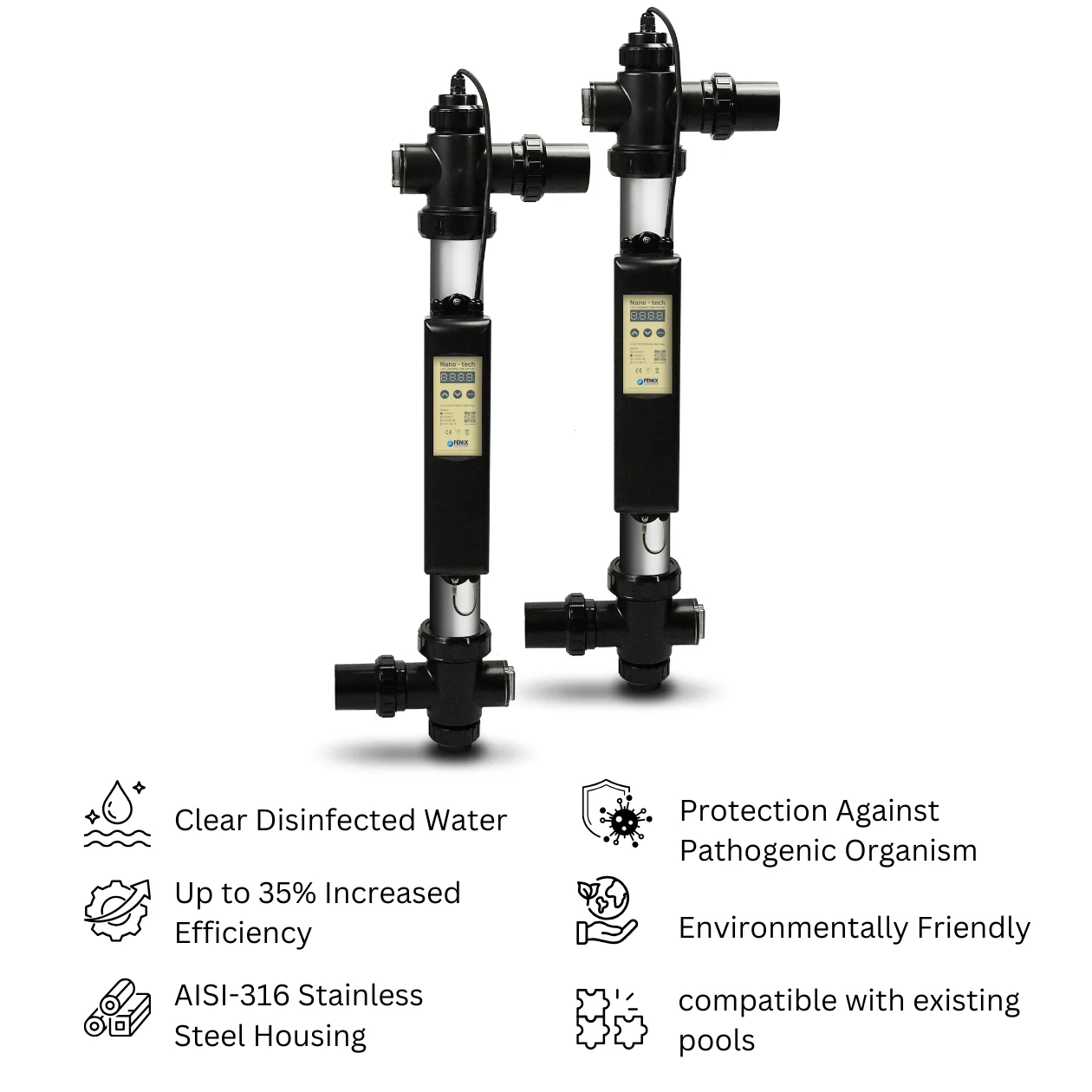

FÉNIX UV-C Disinfection System
A Non-chemical Approach To Water Sanitization
The FENIX UV Disinfection System is an advanced solution designed to maintain clean and safe water in swimming pools, spas, and other aquatic facilities. The system has a precise and compact design with its robust housing, mirror-polished interior and quartz sleeve.
There are three main models:
- n
- FENIX UV-C Standard Model: the pure and essential model.
- FENIX UV-C Timer Model: equipped with a built-in timer to monitor UV lamp operating hours.
- FENIX UV-C Flow Switch Model: better resistance to temperature changes and cuts off the power when overheating.
All models feature a high-intensity ultraviolet lamp that emits a wavelength of 254 nm in the UV specturm. The 254 nm wavelength deactivates the DNA of bacteria, viruses, and other pathogens preventing them from replicating and causing disease. This advanced ultraviolet technology provides a non-chemical solution for pool disinfection, offering a straightforward, cost-efficient, and low-maintenance option.
UV-C System Benefits:
- High Transmission: High-quality quartz sleeve ensures nearly 100% transmission of UV-C at 254 nm, providing protection against air and water flow, breakage, and temperature fluctuations.
- Eco-Friendly: Reduces chlorine consumption by up to 70% and minimizes water renewal needs.
- Efficient and Cost-Effective: The mirror-polished interior of the housing increases the UV reflection rate by up to 35% and thus enhances the work efficiency. The operational costs over time are lower due to the reduced need for chemical disinfectants and maintenance efforts.
- Better Protection: Ensures water is free of unpleasant smells and does not irritate the eyes, significantly reducing the number of chloramines.
- Compatibility: Can be seamlessly integrated with existing pool filtration systems, making them a versatile option for both new and existing pools.
Technical Information:
| Fénix UV-C Disinfection Systems | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Max. Flow Rate | Pool Volume | Input Power | Max. Current | Max. Pressure | Cell Connection | Electric Ballast | Lamp Lifetime | |
| UV-C Flow Switch Models (with optional timer) | |||||||||
| FUV30F | 30.0 m³/h | 130 m³ | 130W | 0.95A | 3 bar | 1.5" (50mm) / 2.0" (63mm) | 240V AC 50-60Hz | 12000 hr | |
| FUV30TF | 30.0 m³/h | 130 m³ | 130W | 0.95A | 3 bar | 1.5" (50mm) / 2.0" (63mm) | 240V AC 50-60Hz | 12000 hr | |
| UV-C Standard Models | |||||||||
| FUV7 | 7.0 m³/h | 15 m³ | 16W | 0.29A | 3 bar | 1.5" (50mm) / 2.0" (63mm) | 120V - 240V AC 50-60Hz | 9000 hr | |
| FUV20 | 20.0 m³/h | 40 m³ | 40W | 0.29A | 3 bar | 1.5" (50mm) / 2.0" (63mm) | 120V - 240V AC 50-60Hz | 9000 hr | |
| FUV25 | 25.0 m³/h | 75 m³ | 75W | 0.57A | 3 bar | 1.5" (50mm) / 2.0" (63mm) | 120V - 240V AC 50-60Hz | 9000 hr | |
| UV-C Timer Models | |||||||||
| FUV20T | 20.0 m³/h | 40 m³ | 40W | 0.44A (120V) / 0.20A (240V) | 3 bar | 1.5" (50mm) / 2.0" (63mm) | 120V - 240V AC 50-60Hz | 9000 hr | |
| FUV25T | 25.0 m³/h | 75 m³ | 75W | 0.82A (120V) / 0.38A (240V) | 3 bar | 1.5" (50mm) / 2.0" (63mm) | 120V - 240V AC 50-60Hz | 9000 hr | |
